Corinthian Order Vignola Column 3D Model

3DSKY FREE – Corinthian Order Vignola Column 3D Model

  1. – Corinthian Order Vignola Column
  2. – Platform: 3dsMax 2015 + fbx
  3. – Render: Corona
  4. – Size: 148079 KB
  5. – Style: Classic
  6. – Materials: Stone
  7. – Type: Architecture – Other
  8. – 3D Model ID: 2655575.5e06423ad5138

3DS MAX – FREE DOWNLOAD

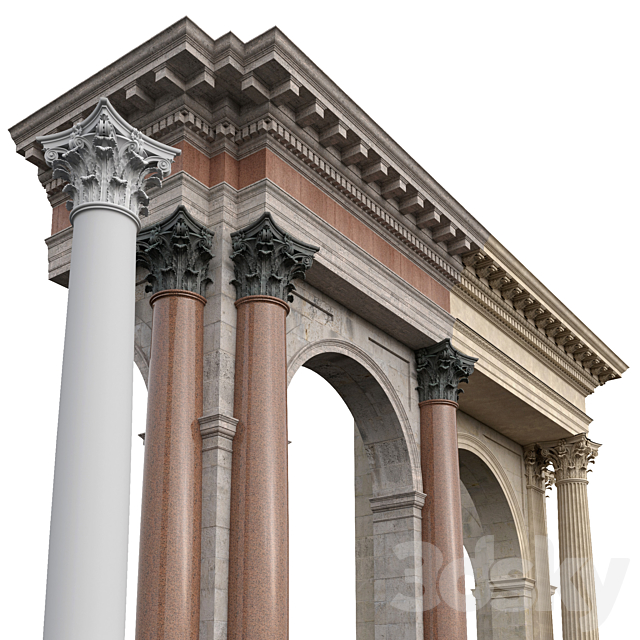

Preview Image 1:

Corinthian Order Vignola Column Free Download

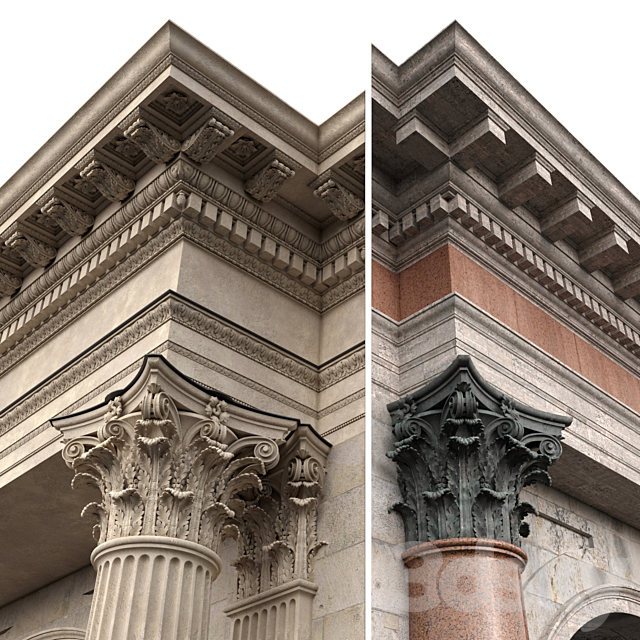

Preview Image 2:

3d

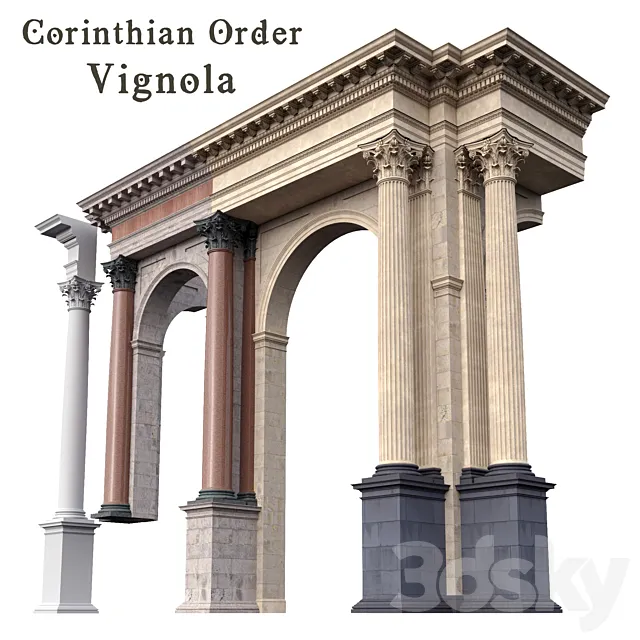

Preview Image 3:

3dsky Free Download

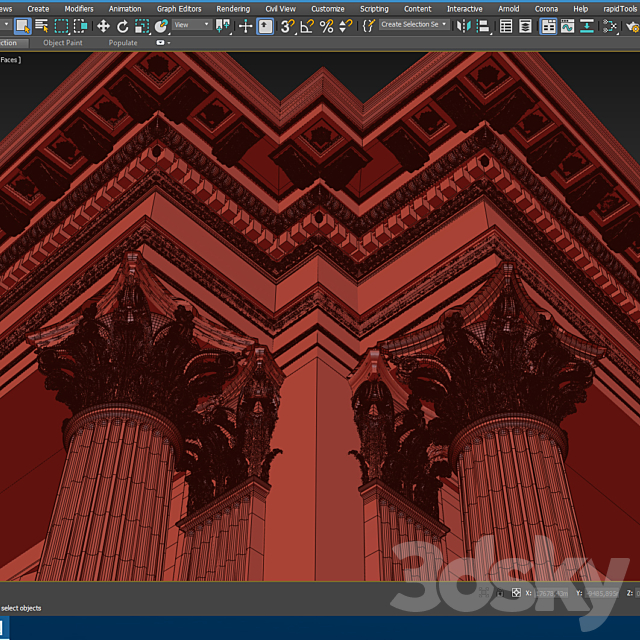

Preview Image 4:

3dsky

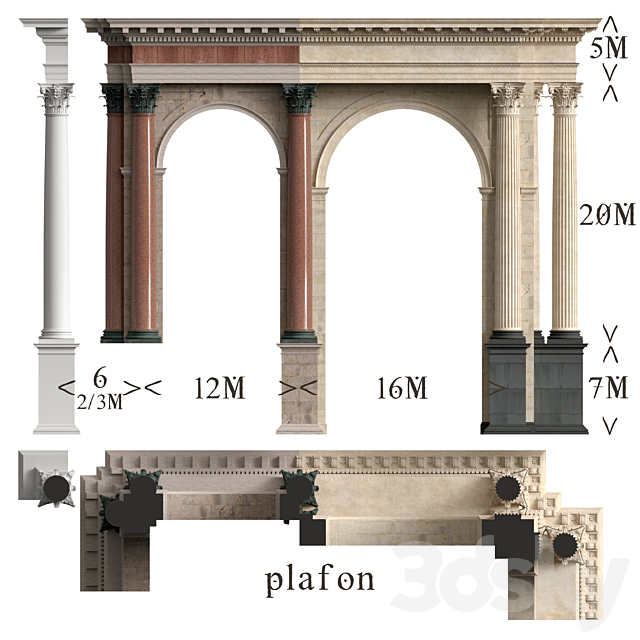

Preview Image 5:

3dskyfree

#3DSKY DECOR HELPER

Other Orders and Columns
https://3dsky.org/collection/shared/5079628

The order is built according to the rules given by the Italian Renaissance architect Giacomo Barozzi da Vignola.
Used literature: I.B. Mikhalovsky Architectural forms of antiquity 1949; O. Garneri Orders of Civil Architecture 1937
For accuracy of construction the value of the Module is taken to be 1080 mm so the model is quite large with a total size of 48.54 x 16.56 x 34.56 m.
References – Kazan and St. Isaac Cathedrals in St. Petersburg.

The model includes a Corinthian order of two types: with and without decorations.
Without decorations – an arch without a pedestal three-quarter columns.
With decorations – an arch with a pedestal freestanding columns with pilasters.
You can vary these parameters and simulate various types of architectural porticoes.
In a stand-alone order the modifier stack is not collapsed to enable further entablature construction.

– The model at the origin the pivots of the objects in the center
– Columns elements of capitals modules – instance. The elements of capitals are attached to the column trunks (link) and are blocked by moving turning scaling (hierarchy> link info> locks). To move rotate or scale the column change the barrel object (fust).
– No groups
– Normal is not inverted
– X-form done
– Textures and materials have correct names without Cyrillic
– There is no excess geometry

Polygons: 2 187 707
Vertices: 2 212 193
