3DSKY FREE – Doric Order Vignola Column 3D Model
- – Doric Order Vignola Column
- – Platform: 3dsMax 2015 + fbx
- – Render: Corona
- – Size: 59534 KB
- – Style: Classic
- – Materials: Stone
- – Type: Architecture – Other
- – 3D Model ID: 2655609.5e064711ac06a

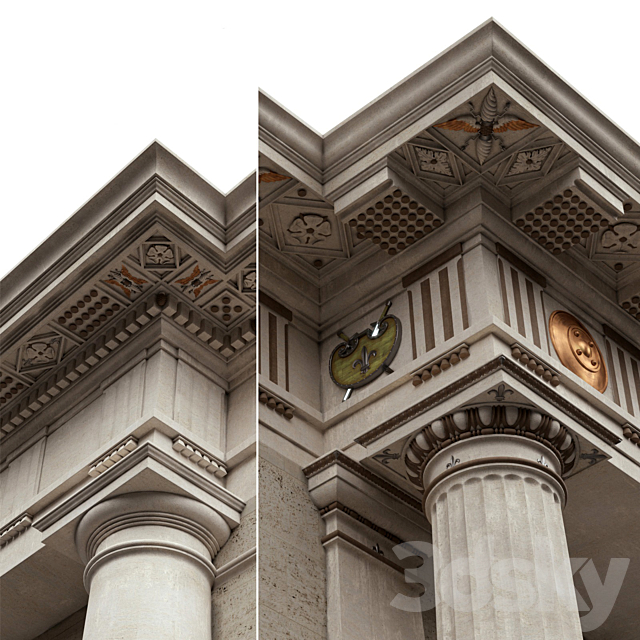

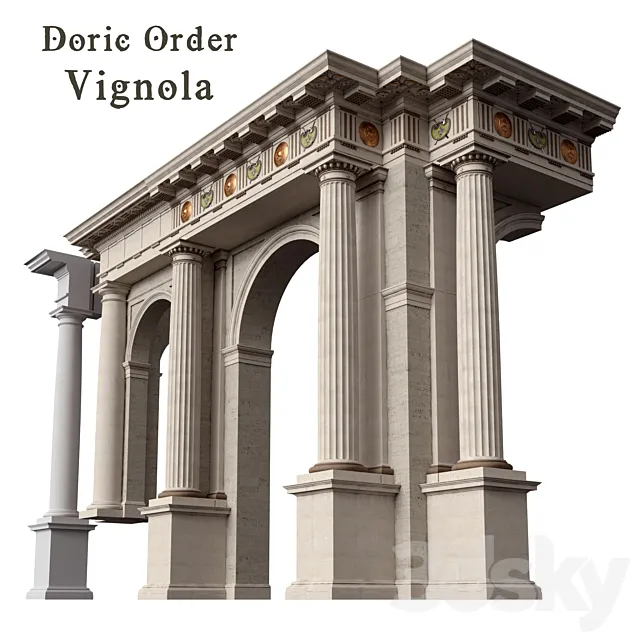

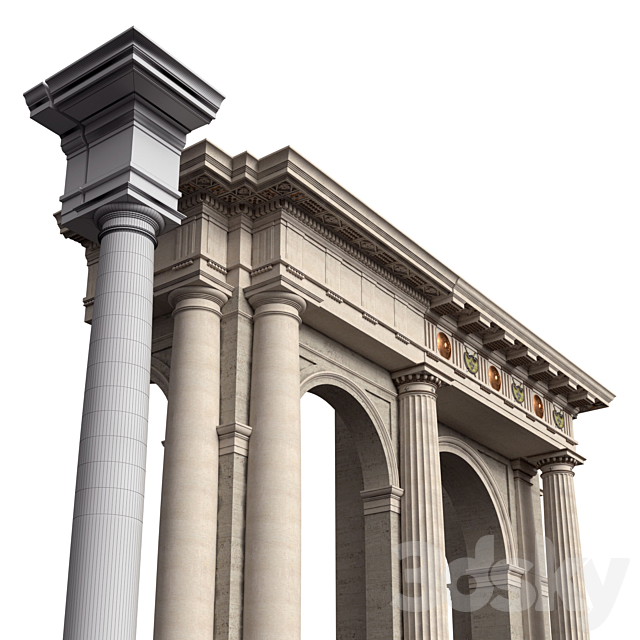

Preview Image 1:
Preview Image 2:
Preview Image 3:
Preview Image 4:
Preview Image 5:
#3DSKY DECOR HELPER
Other Orders and Columns
https://3dsky.org/collection/shared/5079628
The order is built according to the rules given by the Italian Renaissance architect Giacomo Barozzi da Vignola.
Used literature: I.B. Mikhalovsky Architectural forms of antiquity 1949; O. Garneri Orders of Civil Architecture 1937

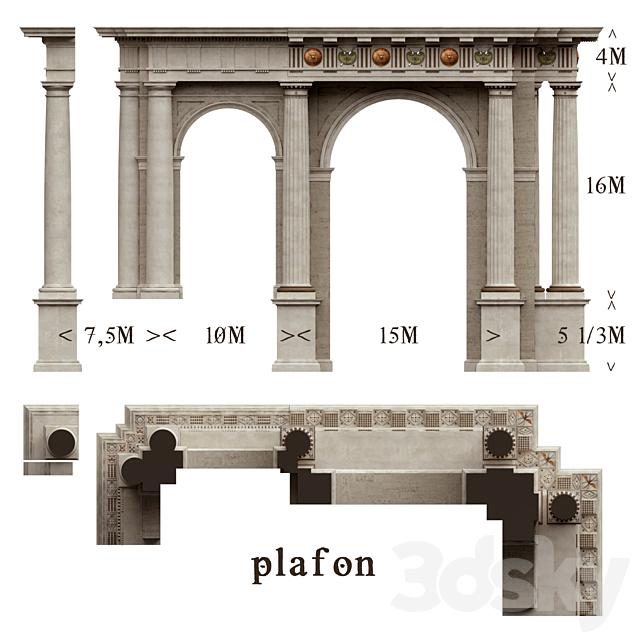

For the accuracy of the construction the value of the Module is taken to be 1080 mm so the model is quite large with a total size of 46.35 x 16.93 x 27.36 m.
The model includes a Doric order of two types: toothed and modular.
Toothed – an arch without a pedestal three-quarter columns.
Modular – arch with a pedestal freestanding columns with pilasters.
You can vary these parameters and simulate various types of architectural porticoes.
In a stand-alone order the modifier stack is not collapsed to enable further entablature construction.
– The model at the origin the pivots of the objects in the center
– Duplicate objects – instance
– No groups
– Normal is not inverted
– X-form done
– Textures and materials have correct names without Cyrillic
– There is no excess geometry

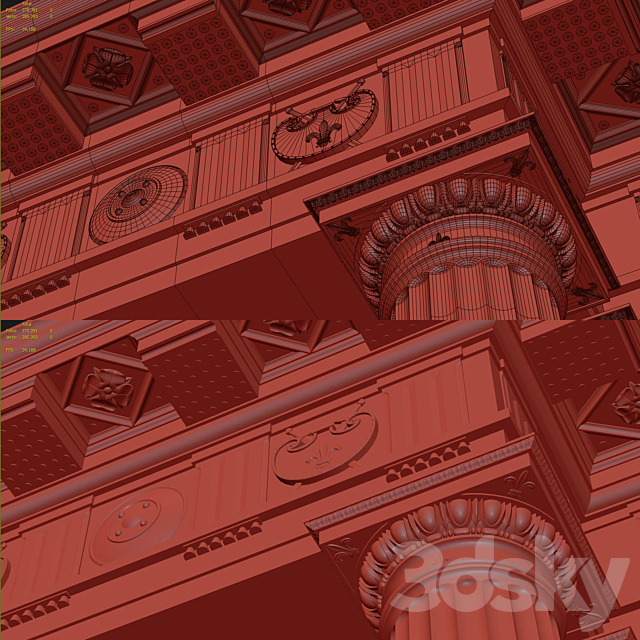

Polygons: 369 907
Vertices: 384 909
