Tuscan Order Vignola Column 3D Model

3DSKY FREE – Tuscan Order Vignola Column 3D Model

  1. – Tuscan Order Vignola Column
  2. – Platform: 3dsMax 2015 + fbx
  3. – Render: Corona
  4. – Size: 133337 KB
  5. – Style: Classic
  6. – Materials: Stone
  7. – Type: Architecture – Other
  8. – 3D Model ID: 2585822.5dadc89f93a1c

3DS MAX – FREE DOWNLOAD

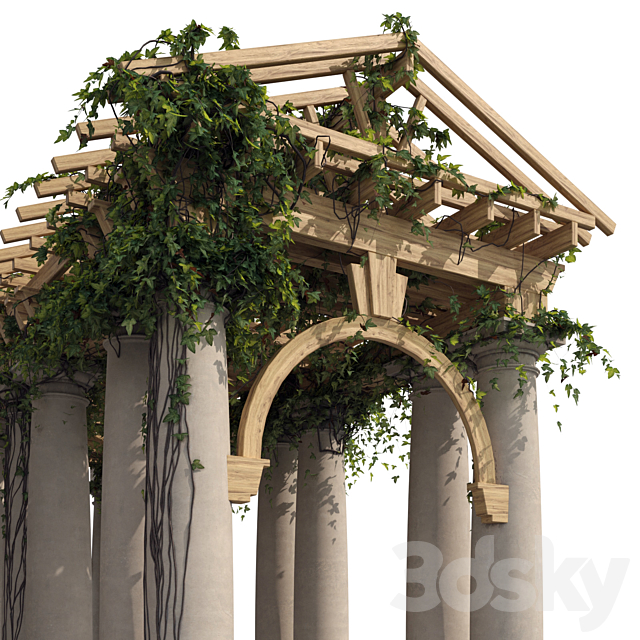

Preview Image 1:

Tuscan Order Vignola Column Free Download

Preview Image 2:

3d

Preview Image 3:

3dsky Free Download

Preview Image 4:

3dsky

#3DSKY DECOR HELPER

Other Orders and Columns
https://3dsky.org/collection/shared/5079628

The Tuscan Order is used in minor buildings such as stables baths river crossings territory fences garden decorative elements etc.

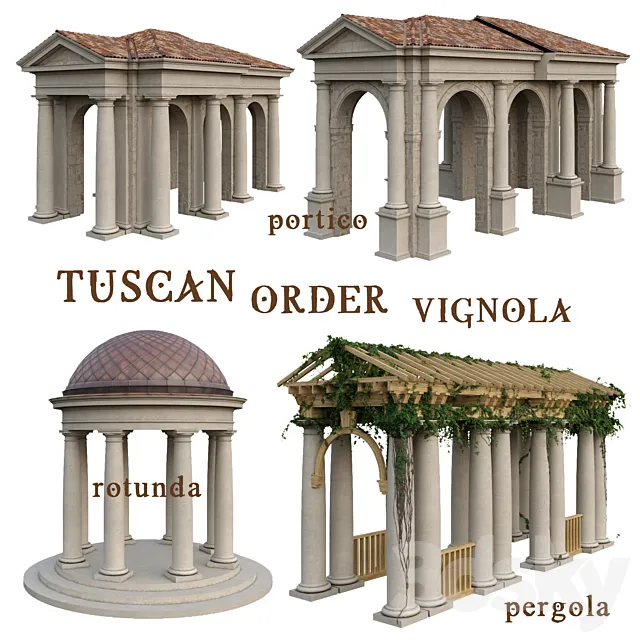

Examples of the application of the Tuscan order for the construction of porticos of 4 types:
– with three-quarter columns without a pedestal
– with three-quarter columns with a pedestal
– with freestanding columns and pilasters without a pedestal
– with freestanding columns and pilasters with a pedestal
The value of the Module (the lower radius of the column trunk) is taken to be 180 mm.
The value of the slope of the roof is 22.5 degrees.
Dimensions of the model – 9x17x5 (h) m.
For a close angle to geometry the chamfer modifier was used.

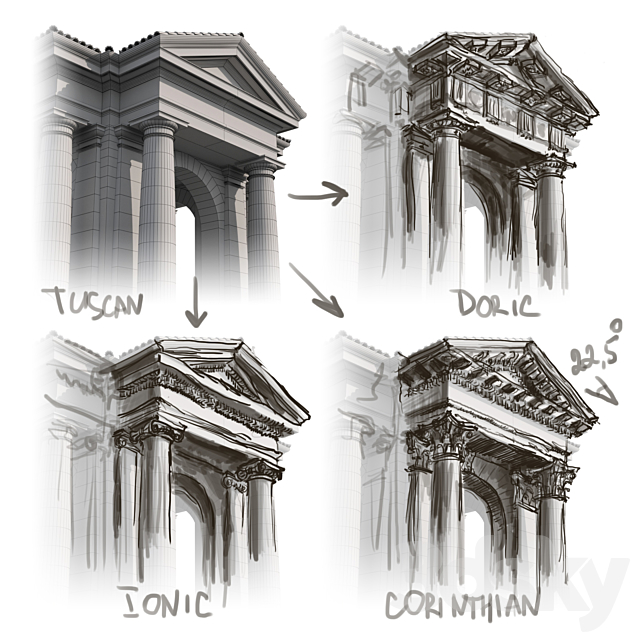

These porticos arcades and rotundas can also be built using other orders (third preview):
– Doric https://3dsky.org/3dmodels/show/doric_order_vignola_3
– ionic https://3dsky.org/3dmodels/show/ionic_order_vignola_1
– Corinthian https://3dsky.org/3dmodels/show/corinthian_order_vignola_3
– composite https://3dsky.org/3dmodels/show/composite_order_palladio

– The model at the origin the pivots of the objects in the center
– Columns pedestals – instance
– No groups
– Normal is not inverted
– X-form done
– Geometry textures and materials have the correct names without the Cyrillic alphabet. Texture paths are clipped
– There is no excess geometry everything is in a single layer

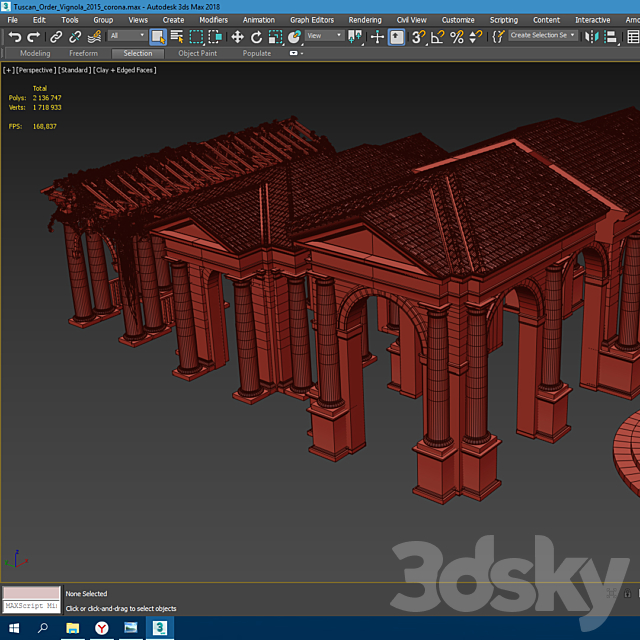

Number of polygons:
ivy – 1 815 180
tile – 235 140
architecture – 86 420
